Description

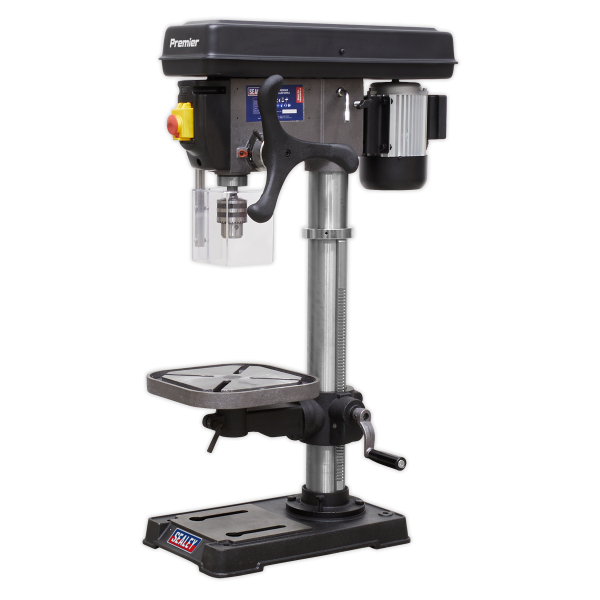

• One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop. • Features heavy-duty aluminium-bodied motor for long and reliable performance. • No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. • Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included). • Supplied with an electrically inter-locked chuck guard. • Large sized square table fitted with precision rack and pinion height adjustment. • 16mm(5/8″) Capacity chuck, MT2. • Height: 1050mm. • Spindle Centre to Column: 190mm. • Motor Power: 370W. • Column Diameter: Ø80mm. • Spindle Travel: 80mm. • Weight: 55kg. • 3 Year Guarantee*
| Base Size: | 495 x 290mm |
| Collar Diameter: | Ø60mm |
| Column Diameter: | Ø80mm |
| Drilling Capacity (Chuck Size): | 16mm |
| Integral Work Light: | Yes |
| Maximum Distance Spindle to Base: | 660mm |
| Maximum Distance Spindle to Table: | 475mm |
| Motor Power (Start): | 370W(600W) |
| Nett Weight: | 55kg |
| Number of Speeds: | 16 |
| Optional Accessories: | PDM/KC – Keyless Pillar Drill Chuck 16mm |
| Overall Height: | 1050mm |
| Speed Range: | 190-3000rpm |
| Spindle Centre to Column: | 190mm |
| Spindle Nose Taper: | MT2 |
| Spindle Travel: | 80mm |
| Supply: | 230V |
| Swing: | 380mm |
| Working Base Surface Size: | 205 x 200mm |
| Working Table Surface Size: | 290 x 290mm |
